Catalog & Datasheets

Precision-engineered hardware modules and development platforms — each with a downloadable technical datasheet.

5 products available

Microcontroller

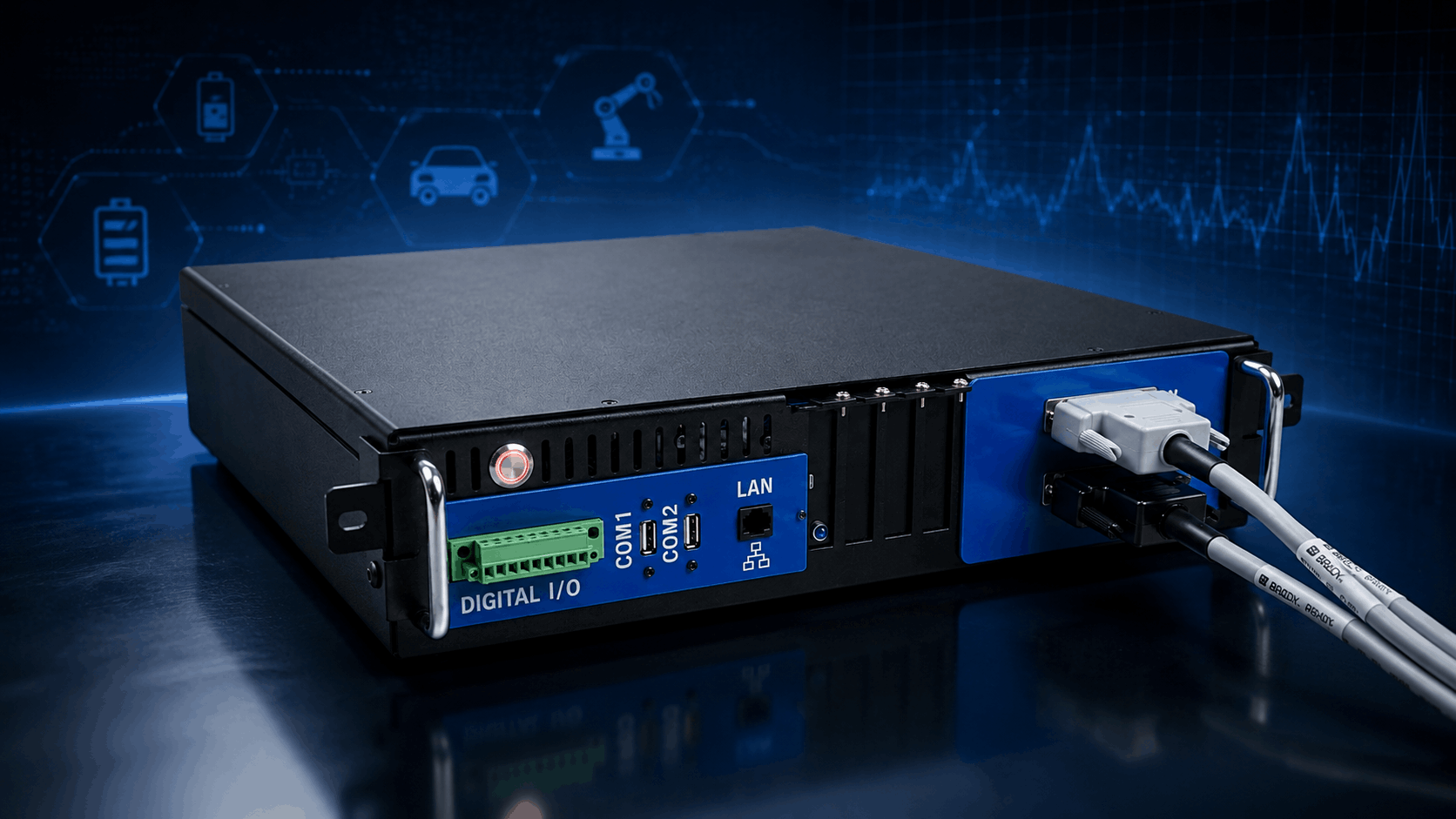

BharatX OHM Matrix™

Indias First Indigenous High-Speed Multi-Channel EV Battery Weld Resistance Detection System,Measure 32 channels simultaneously in just 1 second for faster, more reliable battery production quality control.

32 Channels 1 Second Test Cycle 1 Second Test Cycle Micro Ohm Accuracy

SKU: BBZ-MIARM002

Datasheet

Precision Measurement System

BharatX Probe Master™

Engineered for high-precision dimensional inspection, BharatX Probe Master™ delivers synchronous 64-channel LVDT acquisition with micron-level accuracy for modern production environments.

64 H10 LVDT Channels Micron Accuracy Synchronous Acquisition RS485 Communication

SKU: BX-PM-001

Datasheet

Sensor Module

BXtronics Andon Matrix Display

Real-Time Industrial Communication & Production Monitoring Solution

TCP/IP Communication RS-485 & RS-232 Interface Bluetooth & Wi-Fi Connectivity Serial Communication Support Multi-Line Production Monitoring

SKU: BBZ-SETEM002

Datasheet

Battery Measurement

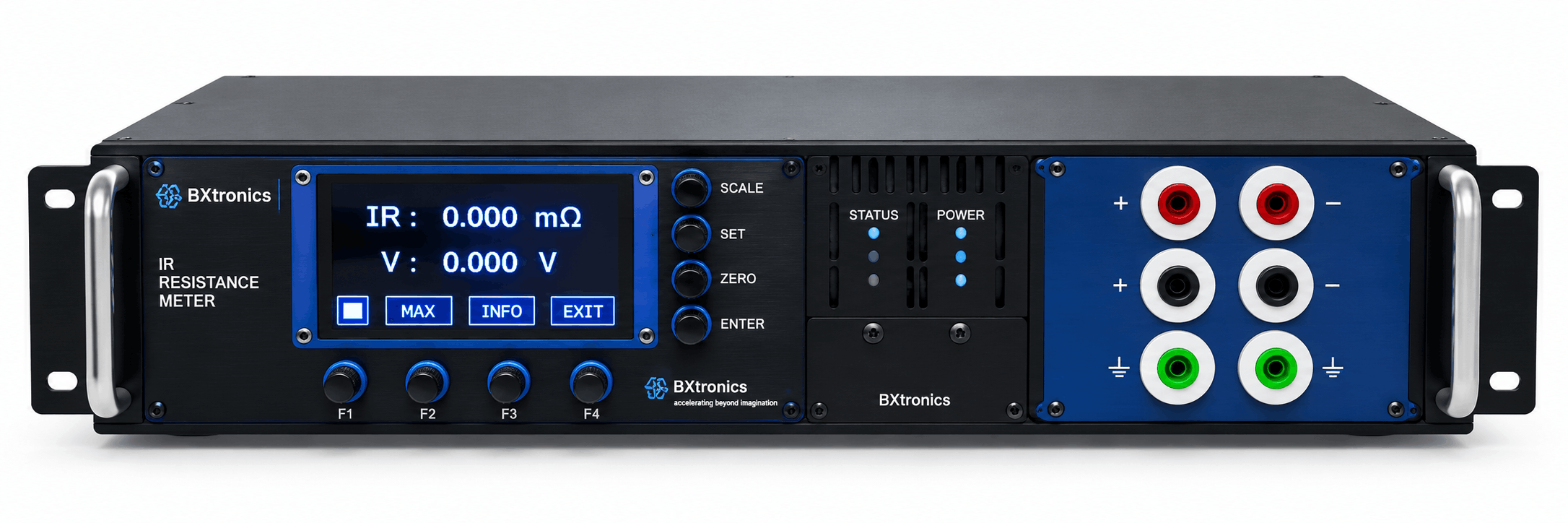

Internal Resistance (IR) and Open-Circuit Voltage (OCV) measurement

BX IRV 16™ is an industrial measurement platform developed for battery test applications that require Internal Resistance (IR) and Open-Circuit Voltage (OCV) measurement across multiple test points. The instrument combines a rack-format industrial enclosure, an operator-oriented front panel and a modular multiplexer architecture that can be configured for up to 16 measurement channels. Ethernet with Modbus TCP allows the platform to be integrated into industrial automation, supervisory and test-software environments, while Bluetooth Low Energy (BLE) provides an additional wireless access option. BX IRV 16™ is designed, developed and manufactured by BXtronics Pvt Ltd in India.

SKU: BX IRV 16

Datasheet

Insulation Measurement

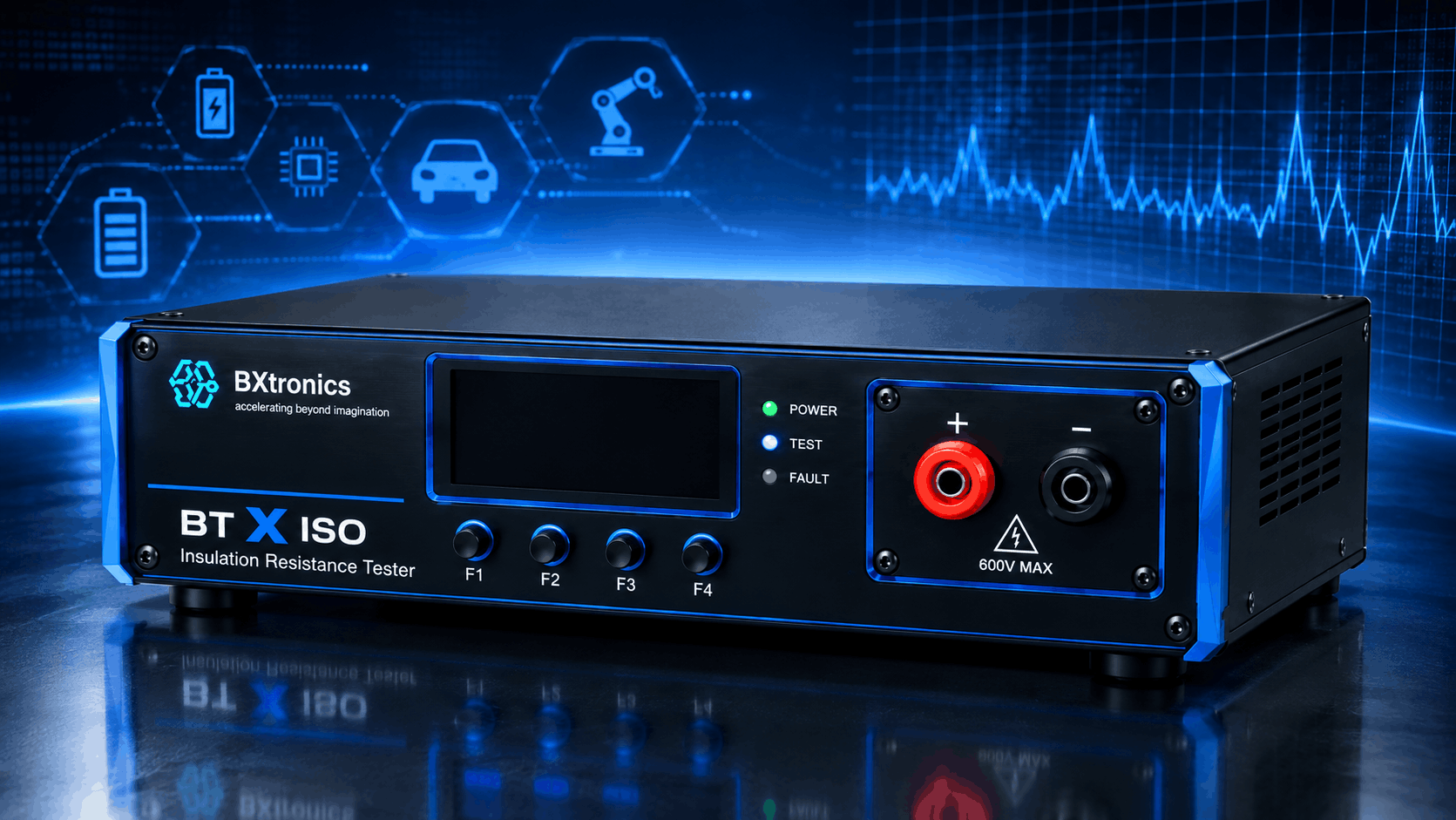

BT X ISO I N S U L A T I O N R E S I S T A N C E T E S T E R

The BT X ISO™ is an industrial insulation resistance tester engineered for reliable measurement, clear onpanel operation, and seamless integration into automated industrial test environments. Built around a rugged instrumentation enclosure, the BT X ISO™ provides local operation through its frontpanel display and function keys, with dedicated indicators for power, test and fault status. For automated and networked environments, the instrument provides Ethernet connectivity with Modbus TCP communication, enabling integration with industrial automation and test-management

SKU: BX ISO TESTER

Datasheet

No products match your search.

Need a Custom Solution?

Contact our engineering team for custom embedded systems, industrial automation solutions, and precision measurement products tailored to your production line.

Contact Sales
